Name: GS-366-002: Standard Pull Stud (Retention Knob) For V-Flange Tooling, BT30 Taper, M12x1.75 Thread, 60° Angle
SKU: 279160

Home Don’t pass up Heat-retention

GS-366-002: Standard Pull Stud (Retention Knob) For V-Flange Tooling, BT30 Taper, M12x1.75 Thread, 60° Angle

GS-366-002: Standard Pull Stud (Retention Knob) For V-Flange Tooling, BT30 Taper, M12x1.75 Thread, 60° Angle

Title:

DefaultTitle

$ 24.94

$ 22.50

Please select combo product attributes

The combo subtotal is $,SAVE$

Product Details

＋

DESCRIPTION

GS Tooling Part Number: GS-366-002
GS Tooling retention knobs (Pull Studs) offer great value. Made of high quality steel, these retention knobs are used in most applications. Please check your machine specifications carefully when ordering to ensure the proper fit and use.

Precision Ground
Numbers Etched
Made to industry standards
Made In Taiwan

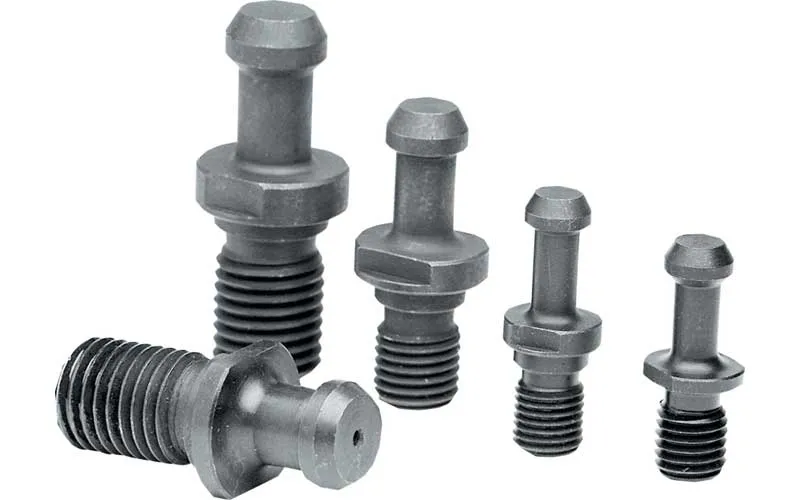

***Product image may be different than actual product.

SPECIFICATIONS

Brand:	GS TOOLING
Type:	Retention Knobs-Standard
Model:	311-09A
Knob Diameter (in):	0.431
Threads:	M12x1.75
Neck Diameter (in):	0.274
Angle:	60
Thru-Coolant:	No
O-Ring:	No
Pilot Diameter (in):	0.491
Distance From Under Flange to Top Of Knob:	0.707
Country Of Origin:	TAIWAN
Prop 65:	Yes
